Torsion™ CNC Router Plans

CNC Router Plans page sample 1 CNC Router Plans page sample 2

Purchase a set of plans for the Torsion CNC router and laser machine.

Before buying these plans, make sure these are the best CNC Router plans for you.

CNC Plans Include

  • 70 sheets of detailed drawings on A3 page size
  • Exploded views, parts lists
  • Fully dimensioned views of each part to be built
  • Instruction manual to accompany drawings
  • Tips, recommended tools, raw materials required, and parts to purchase
  • Bill of Materials (BOM) spreadsheet

$99
Plans Package
buy button for diy cnc router plans

$199
Plans and 3D CAD Model (STEP files)
buy button for diy cnc router plans with CAD files

Digital delivery in .pdf and .xls format. Immediate download after payment.

This machine is a high performance CNC machine using HIWIN profile linear guide rails and bearings, driven by C7 accuracy ball screws. The machine was carefully engineered to maximize performance and minimize cost to build, with low maintainance and high reliability. The frame components are constructed from hardwood baltic birch plywood using a torsion box design. The torsion boxes create a very stiff structure that is very good at resisting twist and deflection during machining operations.

You will get incredible performance for the cost. The estimated cost to build a running machine from these plans is approximately $2000 to $2500, assuming you source the parts yourself. As a comparison, to buy a commercially available machine of similar capability would cost anywhere from $6000 to $10000. Many advertised prices for other kits and machines do not include electronics, or other required components.

CNC Machine Specifications

  • 37" x 24.6" x 6" working area
  • 53" x 44.5" x 28" overall size
  • HIWIN Linear Guideways
  • C7 Ball Screws
  • Gecko G540 Driver
  • (4) NEMA 23 Stepper Motors
  • Capable of machining wood, foam, plastics, composites, aluminum, more
  • Runs a common woodworking router, a spindle, a laser, or drag knife
  • >1000 inch per minute (ipm) rapid speeds
  • >300 ipm feed speeds
  • Run with open source (free) Linux CNC software, or your favorite control software

$99
buy button for diy cnc router plans

$199
Plans and 3D CAD Model (STEP files)
buy button for diy cnc router plans with CAD files

Digital delivery in .pdf and .xls format. Immediate download after payment.

If you don't want the hassle of sourcing all the hardware and electronics yourself, check out the Torsion CNC Router Kit, which includes these plans along with all the hardware and electronics required to build the machine.

Check out this CNC Router Plans Roundup if you'd like to see how this machine compares to other plans on the market.

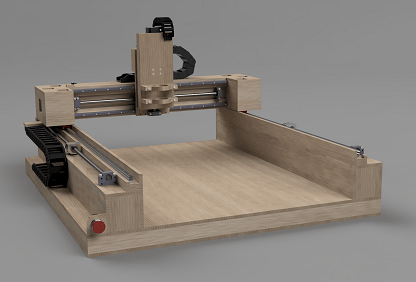

DIY CNC Router - Torsion Model
