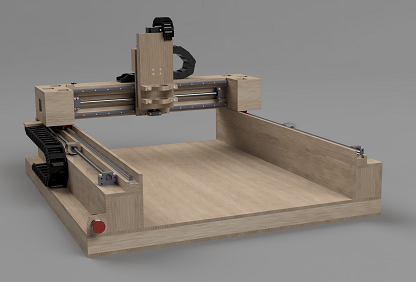

Torsion™ CNC Router Kit

Quickly and easily build your own CNC router

Includes a set of detailed plans and the parts required to build the CNC machine. Wood frame parts are not included. They will be built per the included plans from Baltic Birch sheet stock.

CNC Router Kit


CNC Router Specifications

37" x 24.6" x 6" working area
53" x 44.5" x 28" overall size
Gecko G540 Driver
HIWIN Linear Guideways
Ball Screws
(4) NEMA 23 Stepper Motors
Capable of machining wood, foam, plastics, composites, aluminum, brass, copper
>1000 inch per minute (ipm) rapid speeds
>300 ipm feed speeds
Linux CNC control software, or use your favorite software
You can easily add-on a solid state laser for engraving





CNC Router Kit Contents

Detailed Set of Plans
6 HIWIN Linear Profile Guideway Assemblies
4 Ballscrew Assemblies
4 NEMA 23 Stepper Motors
Gecko G540 Driver with heatsink
Cables and Wiring
48 vdc Power Supply
All Hardware (Screws, Nuts, Bolts)
Aluminum Bar Stock
4 Home/Limit Switches
Emergency Stop Switch
Machine control software is free: LinuxCNC
For part design, use Fusion 360 or FreeCAD (free options)

Not Included in CNC Kit

Birch Plywood and MDF
Wood Glue
Epoxy and Hardener
Router or Spindle
Computer

If you prefer to source your own parts, you can purchase just the CNC Router Plans.
